Emergency Signal Light / Emergency Light / TRI LED Emergency Light / 5 in1 Automobile Emergency Flashlight / Auto-Car Contingency Products / Automobile Emergency Product





Type and Size:

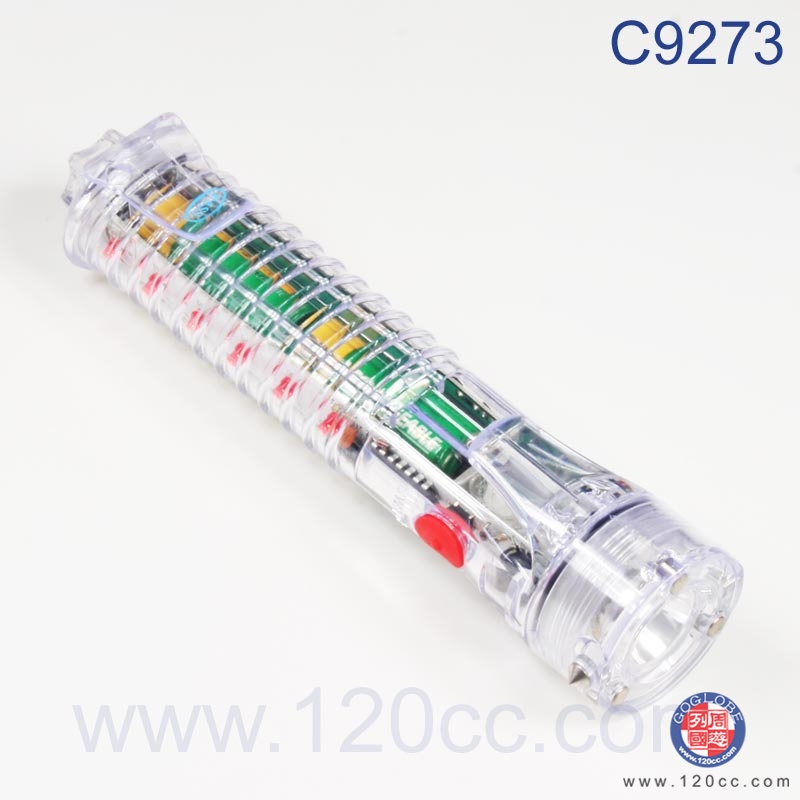

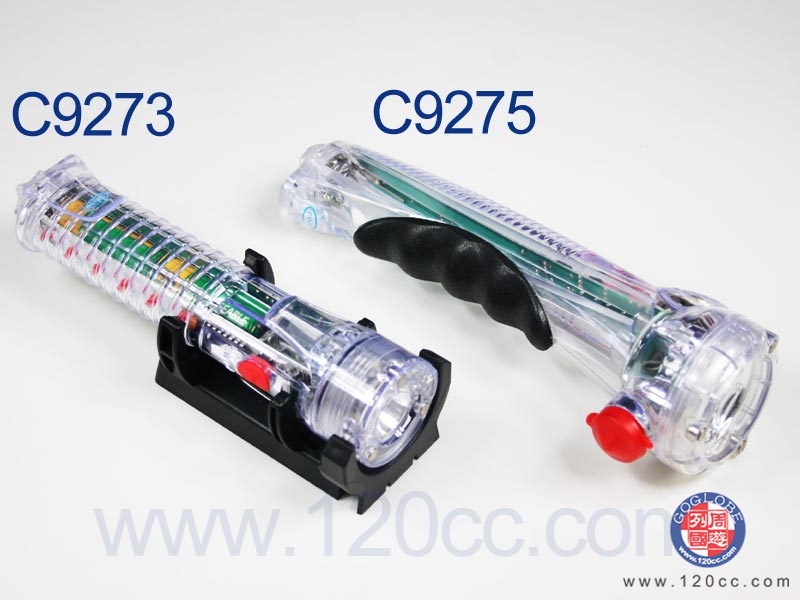

C9273 Emergency Signal Light

Brief: This product with lighting, flashing, cutting safety belt, knocking glass and waterproof, etc

Body Size: 18*5.8*3.2cm

Weight:96.8g（Without Battery）

Color: Clarity, Other Color Available Upon 10K Request

Power Source: 2 * AA Batteries

Ctn Size: 59*40*33cm

Qty Per Ctn: 100PCS

G.W./N.W: 19/17KGS

38,000/20'GP, 68,000/40'GP



Technical Parameters:

Body Material: PC

Voltage input: 3V

Working Current: <380mA

Flash Frequency: 9-11Hz

Max brightness: 30000mcd

Max Luminous flux: >5Lm

Lighting Time: >8Hours

Flashing Time: >40Hours

Lighting And Flashing Simultaneously: >6Hours

Wallop-resistance Degree: 50kg

Switch Lifetime: >5000Times

Plastic Part Lifetime: >5Years

LED Lifetime: >60000Hours



Function:

1. Lighting: It can be used as torch, convenient to maintain and finding parts.

2. Flashing alert: red flashing signal with frequency of 9-11Hz.

3. Cutting the safety belt or other cord.

4. Knocking the glass: There is a hammer on the head of the flashlight.

5. Can hitch your belt.

6. Sticking to iron object.

7. Sticking to small iron object like screws, etc.

8. Waterproof, it can work normally in the rain.



Using:

1. As the situation is emergent, you can use it to break the glass of the door in the car.

2. You can use it to cut off the safety belt.

3. You can use it as emergency signal light.

4. In the darkness, it can be used as flashlight.

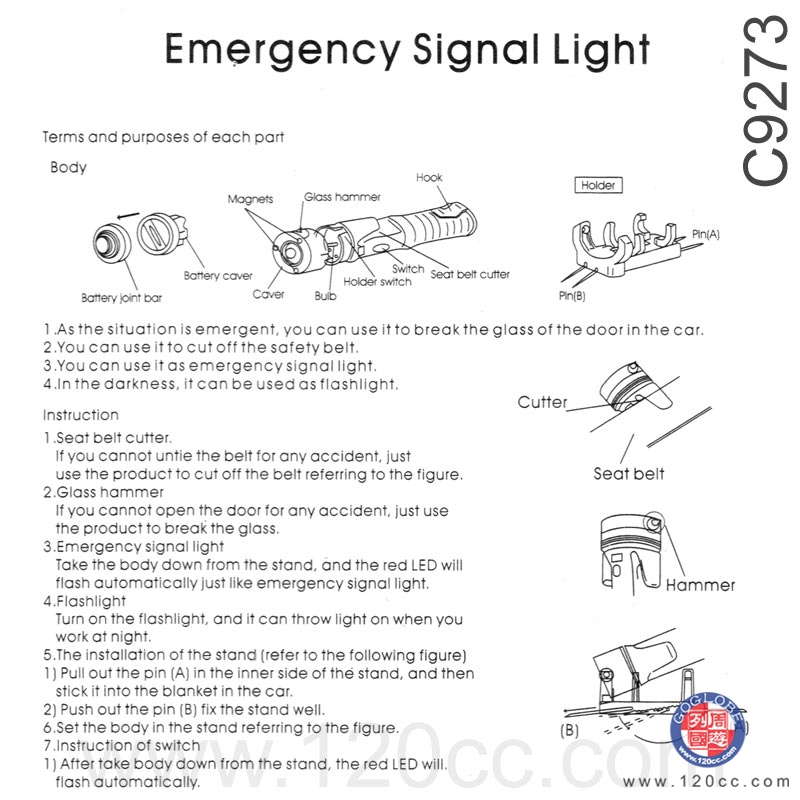

Instruction:

1. Seat belt cutter: If you cannot untie the belt for any accident, just use the product to cut off the belt.

2. Glass hammer: If you cannot open the door for any accident, just use the product to break the glass.

3. Emergency signal light: Take the body down from the stand, and the red LED will flash automatically just like emergency signal light.

4. Flashlight: Turn on the flashlight, and it can throw light on when you work at night.

5. The installation of the stand (refer to the following figure)

1) Pull out the pin (A) in the inner side of the stand, and then stick it into the blanket in the car.

2) Push out the pin (B) fix the stand well.

6. Set the body in the stand (referring to the figure)

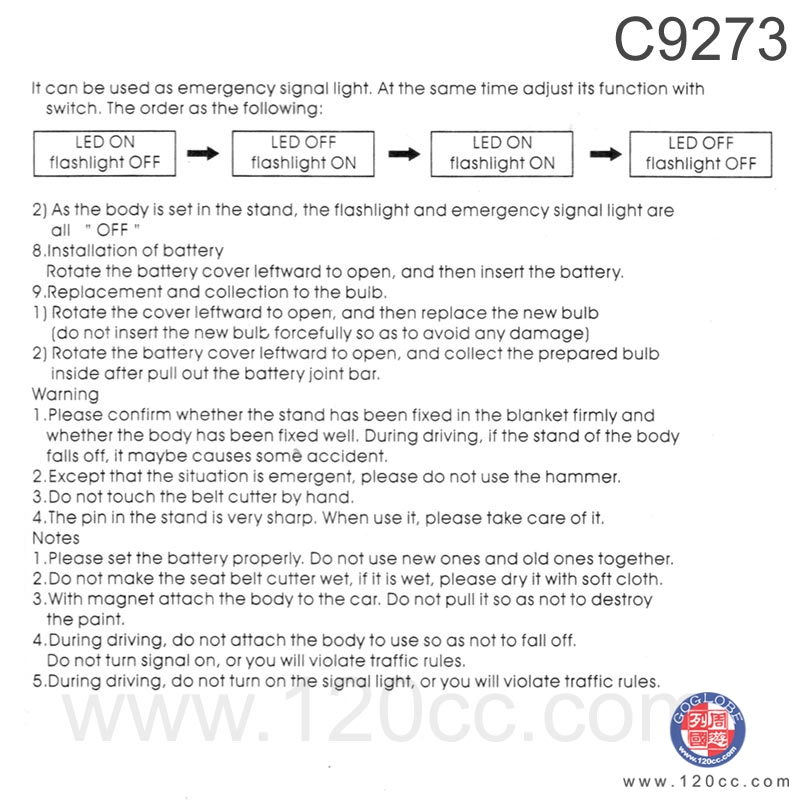

7. Instruction of switch

1) After take body down from the stand, the red LED will flash automatically. It can be used as emergency signal light. At the same time adjust its function with switch.

2) As the body is set in the stand, the flashlight and emergency signal light are all " OFF "

8. Installation of battery: Rotate the battery cover leftward to open, and then insert the battery.

9. Replacement and collection to the bulb.

1) Rotate the cover leftward to open, and then replace the new bulb (do not insert the new bulb forcefully so as to avoid any damage)

2) Rotate the battery cove leftward to open, and collect the prepared bulb inside after pull out the battery joint bar.



Warning:

1. Please confirm whether the stand has been fixed in the blanket firmly and whether the body has been fixed well. During driving, if the stand of the body falls off, it maybe causes some accident.

2. Except that the situation is emergent, please do not use the hammer.

3. Do not touch the bell cutter by hand.

4. The pin in the stand is very sharp, When use if, please take care of it.



Notes:

1. Please set the battery properly. Do not use new ones and old ones together.

2. Do not make the seat belt cutter wet, if it is wet, please dry it with soft cloth.

3. With magnet attach the body to the car. Do not pull it so as not to destroy the paint.

4. During driving, do not attach the body to use so as not to fall off. Do not turn signal on, or you will violate traffic rules.

5. During driving, do not turn on the signal light, or you will violate traffic rules.
