Emergency Signal Light / Emergency Light / TRI LED Emergency Light / 5 in1 Automobile Emergency Flashlight / Auto-Car Contingency Products / Automobile Emergency Product





Type and Size:

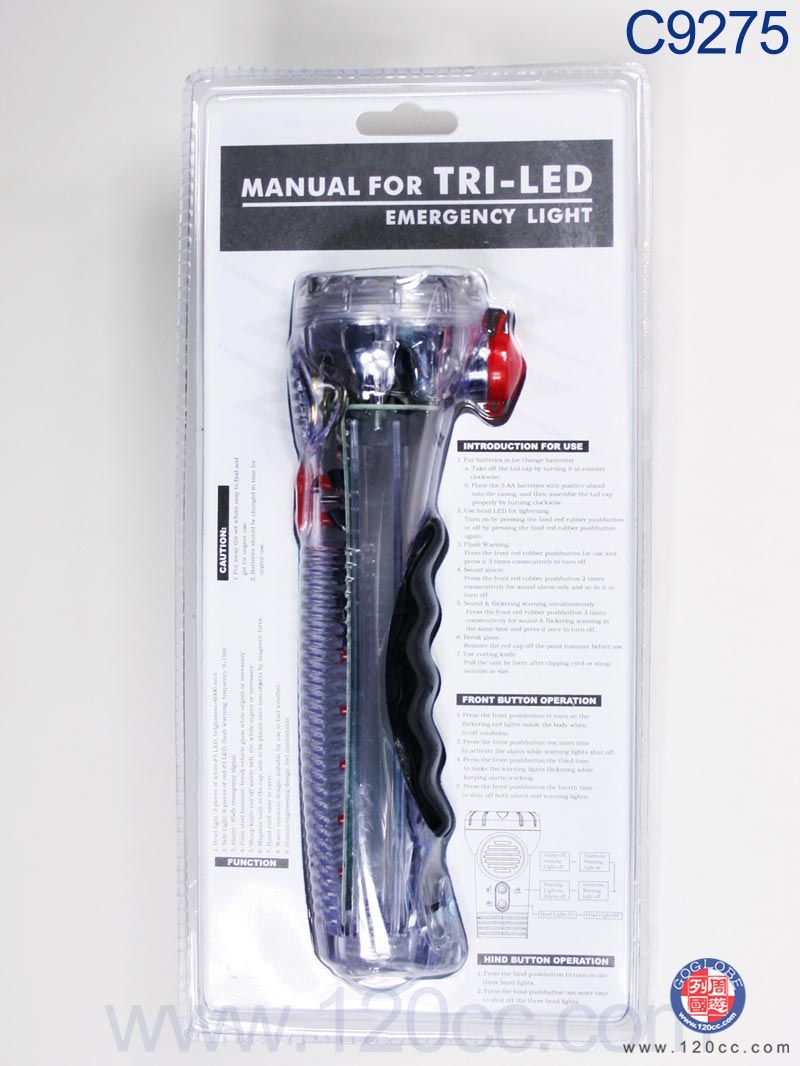

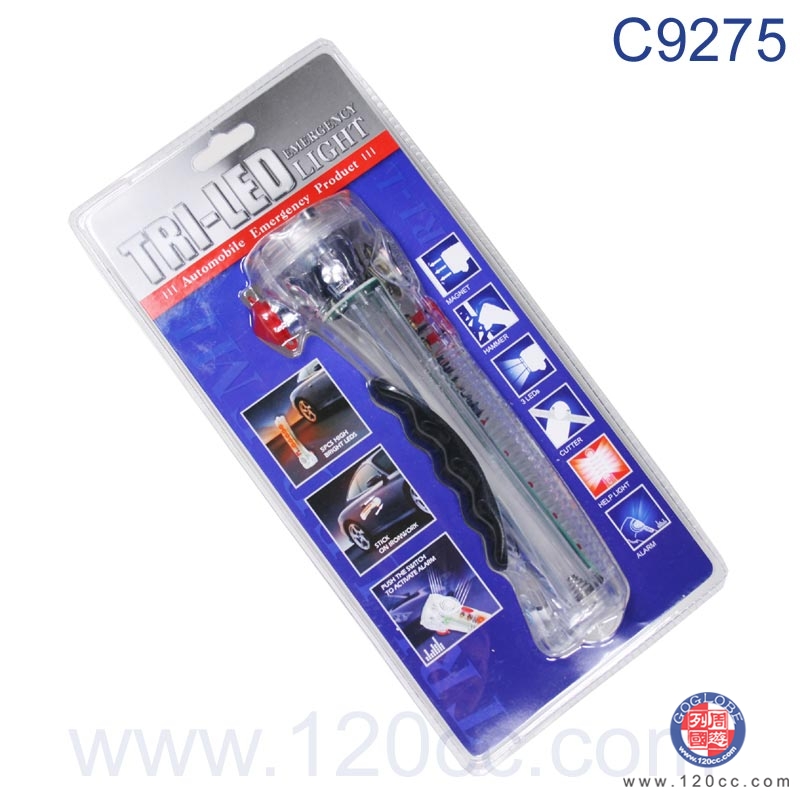

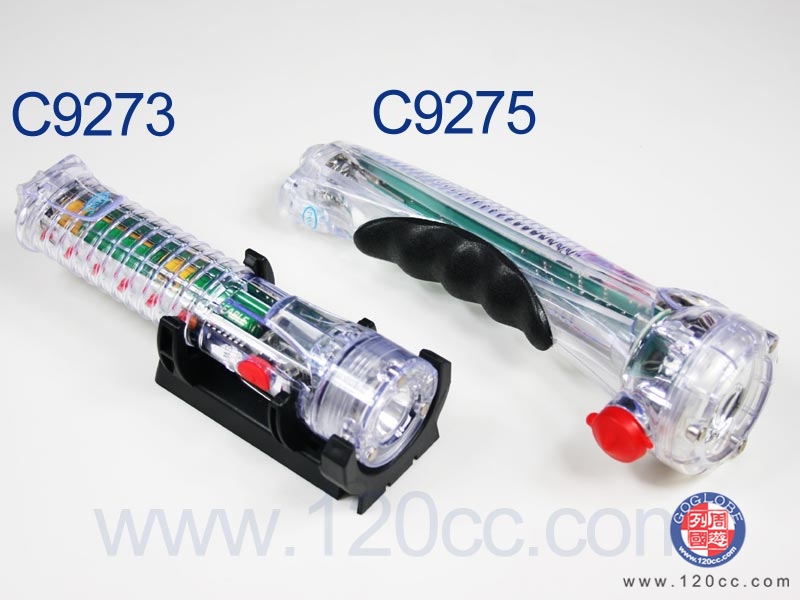

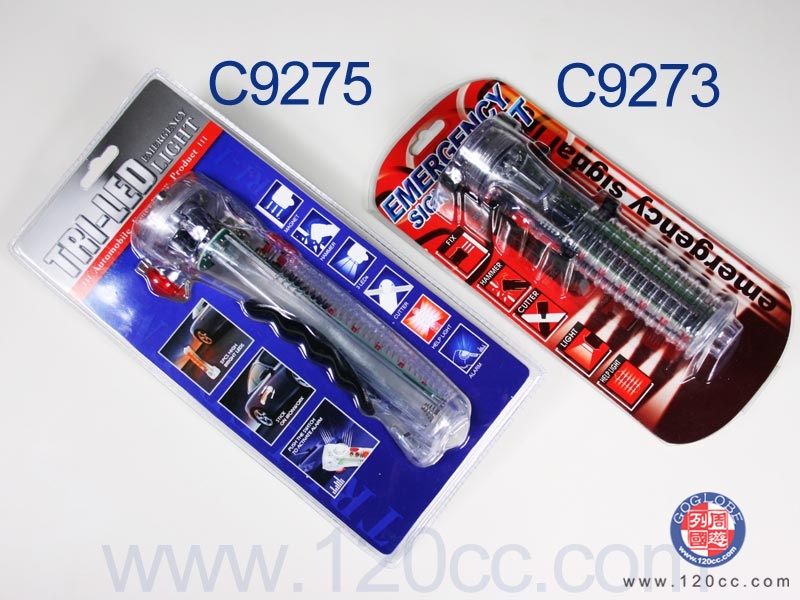

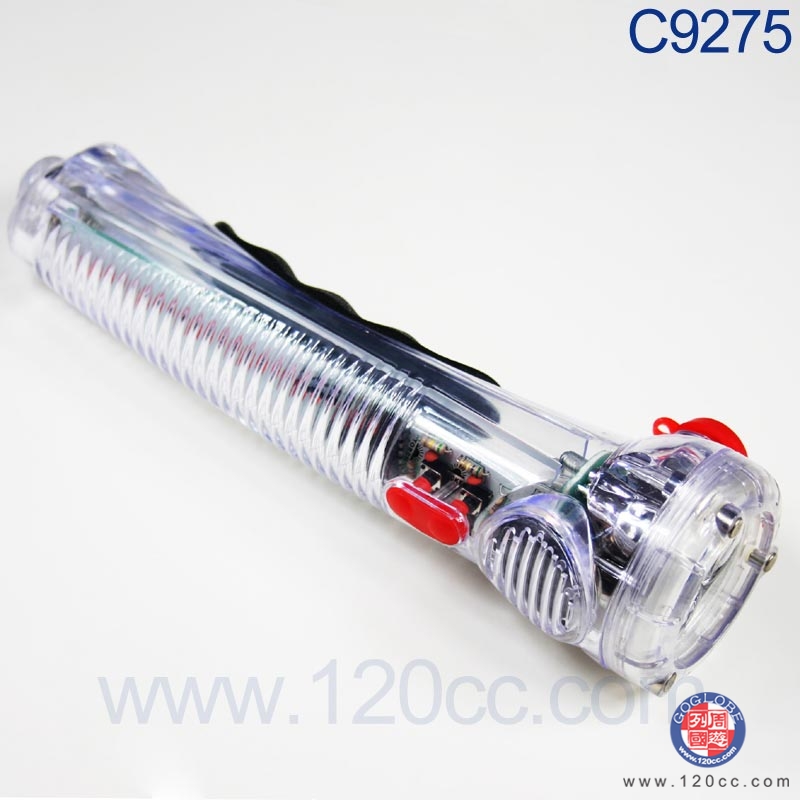

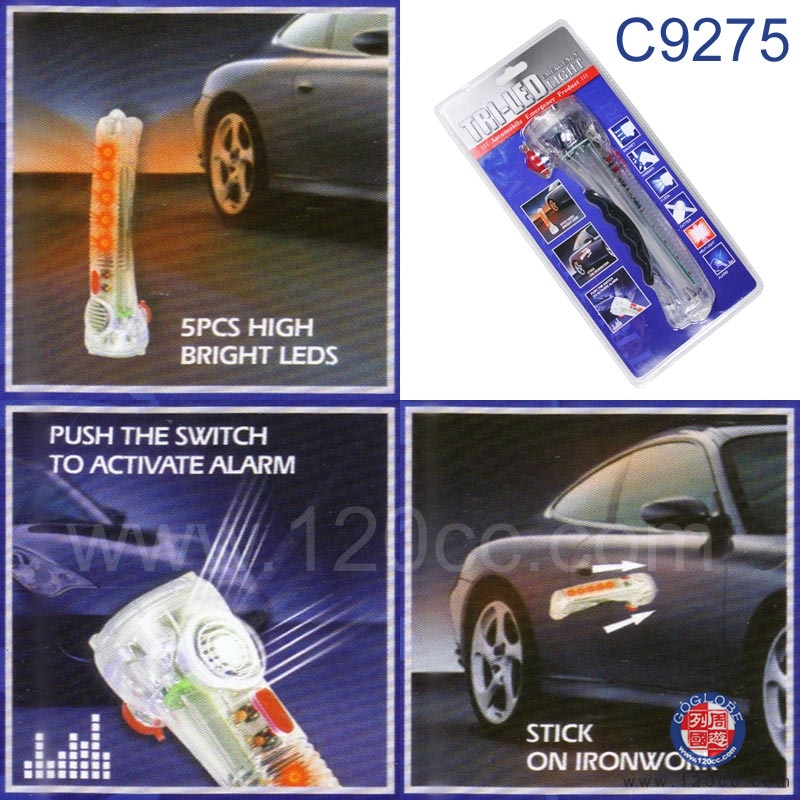

C9275 Emergency Signal Light

Brief: This product with flashlight/warning light/seat belt cutter/glass hammer/stick onto the ironwork/Alarm

Body Size: 20.8*5.6*6.8cm

Body Weight:160g

Body Color: Clarity (Other Color Available Upon 10K Request)

Power Source: 3 AA batteries

Ctn Size: 60*52*30cm

Qty Per Ctn: 40PCS

G.W./N.W/CTN: 11/8.2KGS

12,700/20'GP, 22,600/40'GP

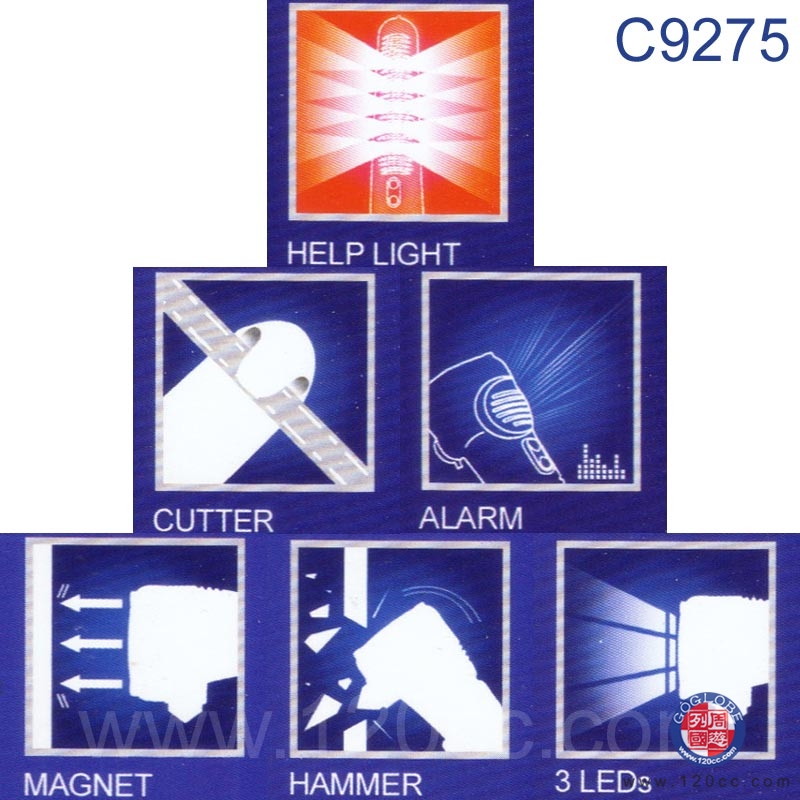

Function:

1. 3LED Flashlight

2. Alert

3. Red LED warning

4. Knocking glass

5. Cutting safety belt

6. Sticking to iron object

7. Sticking to small iron object like screws, etc

8. Waterproof, it can work normally in the rain



Technical Parameters:

Body Material: PC

Voltage Input: 4.5V

Working Current: 350mA (3 Function Working together)

Flash Frequency: 9-11Hz

Max Brightness: 60000mcd

Max Lux: 1800Lux

Max Lm: 4.9Lm

Lighting Time: 3～5Days

Flashing Time: 5～7Days

Alert: 20～40 hours

The Three Functions Work Simultaneously: 15-30 hours

Wallop-resistance Degree: 50kg

Switch Lifetime: >5000Times

Plastic Part Lifetime: >5Years

LED Lifetime: >100000 Hours

Waterproof : It will not influence its functions when use it in rain for 1-2 hours.

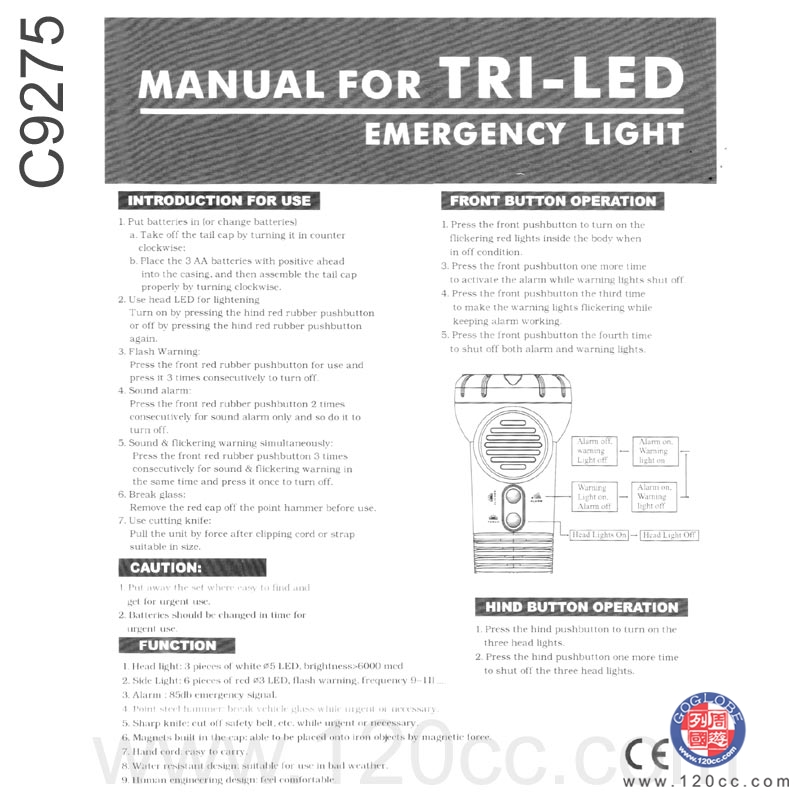

Introduction For Use:

1. Put batteries in (or change batteries)

a. Take off the tail cap by turning it in counter clockwise;

b. Place the 3 AA batteries with positive ahead into the casing, and then assemble the tail cap properly by turning clockwise.

2. Use head LED for lightening: Turn on by pressing the hind red rubber pushbutton or off by pressing the hind red rubber pushbutton again.

3. Flash Warning: Press the front red rubber pushbutton for use and press it 3 times consecutively to turn off.

4. Sound alarm: Press the front red rubber pushbutton 2 times consecutively for sound alarm only and so do it to turn off.

5. Sound & flickering warning simultaneously: Press the front red rubber pushbutton 3 times consecutively for sound & flickering warning in the same time and press it once to turn off.

6. Break glass: Remove the red cap off the point hammer before use.

7. Use cutting knife: Pull the unit by force after clipping cord or strap suitable in size.



Front Button Operation:

1. Press the front pushbutton to turn on the flickering red lights inside the body when in off condition.

2. Press the front pushbutton one more time to activate the alarm while warning lights shut off.

3. Press the front pushbutton the third time to make the warning lights flickering while keeping alarm working.

4. Press the front pushbutton the fourth time to shut off both alarm and warning lights.



Hind Button Operation:

1. Press the hind pushbutton to turn on the three head lights.

2. Press the hind pushbutton one more time to shut off the three head lights.



Function:

1. Head light: 3 pieces of white LED, brightness>6000 mcd

2. Side Light: 6 pieces of red LED, flash warning, frequency 9~ 11Hz.

3. Alarm: 85db emergency signal.

4. Point steel hammer: Break vehicle glass while urgent or necessary.

5. Sharp knife: Cut off safety belt, etc. While urgent or necessary.

6. Magnets built in the cap: Able to be placed onto iron object by magnetic force.

7. Hand cord: Easy to carry.

8. Water resistant design: Suitable for use in bad weather.

9. Human engineering design: Feel comfortable.



Caution:

1. Put away the set where easy to find and get for urgent use.

2. Batteries should e changed in time for urgent use.
